We offer a wide range of Kevel Cleats/Chocks for deck application.
Sizes range from 24” long weighing 50lbs(23KG) to up 48” long weighing 220lbs(100KG).
Our Kevel Cleats/Chocks are made from cast steel and are built to withstand the toughest conditions.
Kevel Cleats/Chocks are designed primarily to be used with line or wire for barge coupling, checking, or mooring.
They are typically placed along the gunnels of a barge or work-boat.

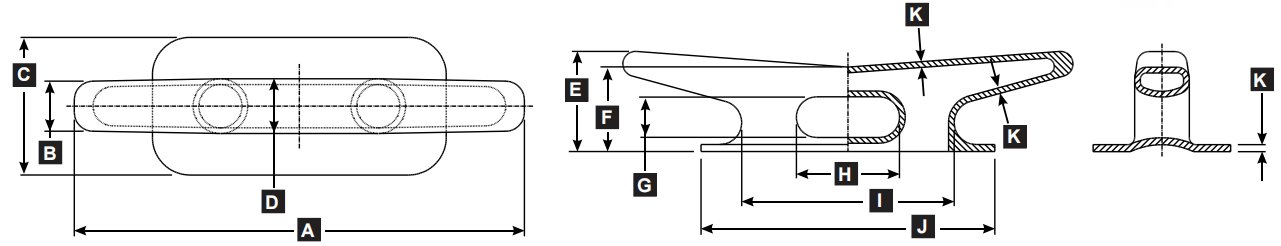

| Model Number | Description | A in. (mm) | B in. (mm) |  C in.(mm) | D in. (mm) | E in. (mm) | F in (mm) | G in. (mm) | H in. (mm) | I in. (mm) | J in. (mm) | K in. (mm) | Weight Total Lbs(Kgs.) |
| KC-24 | 24”Kevel Chock | 24” (610) | 3”(76) | 7.5” (190) | 4” (101) | 5.63” (143) | 5.13” (130) | 2.25” (57) | 3.25” (83) | 9” (229) | 10.5” (267 ) | 0.5” (13) | 50(23) |
| KC-30 | 30”Kevel Chock | 30” (762) | 3.25” (83) | 9.5” (241) | 4” (101) | 7” (178) | 5.62” (143) | 2.38” (60) | 6.88” (175) | 14” (365) | 20.25” (514) | 0.5” (13) | 75(3 4) |
| KC-36 | 36”Kevel Chock | 36” (914) | 4”(101) | 11 ” (279) | 5” (127) | 8” (203) | 6.75” (171) | 3.25” (83) | 8.25” (210) | 17 ” (432) | 23.5” (572) | .56” (14) | 107(48.50) |
| KC-42 | 42”Kevel Chock | 24” (1066) | 4.75” (121) | 12.5” (318) | 6” (152) | 9” (229) | 7.88” (200) | 4.13” (104) | 9.63” (245) | 20” (508) | 26.75” (679) | .53” (13) | 168(76) |
| KC-48 | 48”Kevel Chock | 48” (1219) | 5.5” (1 40) | 14 ” (356) | 7” (178) | 10 ” (254) | 9” (229) | 5” (127) | 11 ” (279) | 23” (584) | 30” (762) | .65” (17) | 220(100) |
