Triangle Connecting Plate/Delta Plate for Mooring System
Known as Triangle plate, Tri-plate, or Eye Pad;
Material: Alloy steel, high tensile strength steel; Stainless steel (optional);
SWL9.5ton to 250ton;
SWL is based on 5 times of MBL;
Finishing: Black tarred painting, Hot dip galvanized.
Application: allows the use of up to three lines from your mooring for redundant protection. Maintains separation of shackles to virtually eliminate line to line interference;
Certificate: BV, ABS, LRS, DNV-GL, CCS
Customized design is available

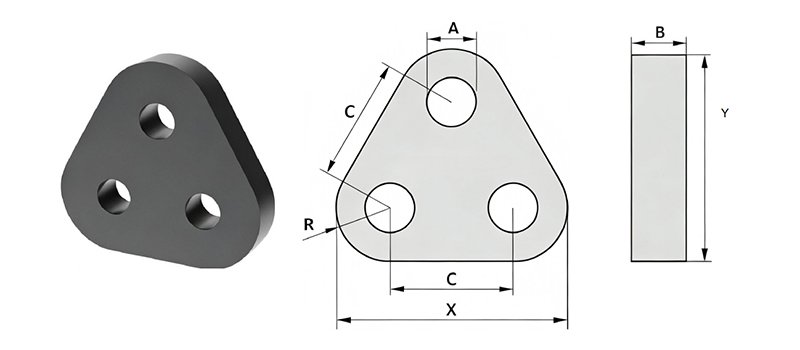

Triangle Connecting Plate/Delta Plate for Mooring System:
| WLL Ton | A mm | B mm | C mm | R mm | X mm | Y mm | Weight KG | ||
| 17 | 47 | 35 | 100 | 55 | 250 | 251 | 10 | ||
| 25 | 55 | 40 | 150 | 50 | 310 | 250 | 18 | ||
| 35 | 60 | 50 | 190 | 30 | 340 | 312 | 28 | ||
| 55 | 75 | 70 | 210 | 105 | 420 | 352 | 58 | ||
| 85 | 50 | 50 | 230 | 135 | 500 | 433 | 96 | ||
| 120 | 125 | 100 | 220 | 120 | 520 | 332 | 188 | ||
| 150 | 115 | 110 | 320 | 155 | 690 | 412 | 255 | ||
